Mikromasch
Budgetsensors
Nanoworld
Nanosensors
sQube
Others
AFMprobeTech
MinusK

sQube
minusK
Sphere




High speed
USC-F5-k30
Nanoworld
Coating: Gold Reflex Coating
Force Const / Res. Freq:
30 N/m / 5000 kHz

Contact,Biological
qp-CONT-10
Nanosensors
Coating: Particl Au
Force Const / Res. Freq:
0.1 N/m / 30 kHz

conductive/EFM
AIOE
Budgetsensors
Coating: Cr/Pt
Force Const / Res. Freq:
0.2 N/m / 15 kHz
2.7 N/m / 80 kHz
7.4 N/m / 150 kHz
40 N/m / 320 kHz

Tapping/Contact
HQ:XSC11/Al BS
MikroMasch
Coating: Aluminum
Force Const / Res. Freq:
0.2 N/m / 15 kHz
2.7 N/m / 80 kHz
7 N/m / 155 kHz
42 N/m / 350 kHz





Minusk

NEW SM-1 Low Frequency Vibration Isolators


Weight: Approximately 155 lb (70.3 kg)
Dimensions: 13" W x 13" D x 20.5" H
(330mm W x 330mm D x 521mm H)
Load Capacities (approximate):
Model Payload Range* Price**
700SM-1 110 - 750 lb
(50 - 340 kg)
$10,048.50
1200SM-1 675 - 1330 lb
(315 - 603 kg)
$10,258.50
1500SM-1 800 - 1550 lb
(363 - 703 kg)
$10,468.50
1900SM-1 1200 - 1950 lb
(544 - 885 kg)
$10,678.50
2400SM-1 1800 - 2500 lb
(817 - 1134 kg)
$10,888.50
2900SM-1 2400 - 3000 lb
(1089 - 1361 kg)
$11,098.50
3400SM-1 2800 - 3600 lb
(1270 - 1633 kg)
$11,308.50
4000SM-1 3400 - 4200 lb
(1542 - 1905 kg)
$11,728.50

Performance

  • Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range.
  • Horizontal natural frequency is load dependent. 1/2 Hz or less can be achieved at or near the nominal load.
  • See Performance for a typical transmissibility curve with 1/2 Hz natural frequency.

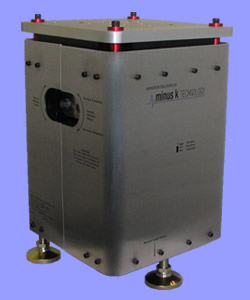

Low Frequency Vibration Isolation & Isolators


Low frequency vibration isolator for weight loads from 500 to 4200 lbs. and 1/2 Hz performance vertical and horizontal.

The SM-1 negative-stiffness isolator is the basic building block of the FP-1 Floor Platform and other heavy multiple isolator systems. They require no air or electricity.

This isolator has the same basic features of our all passive, negative-stiffness, manually-adjustable bench top isolators. It offers our very-low frequency isolation performance for payloads of many thousands of pounds.

The SM-1 isolator can be used alone or with any number of additional units to achieve higher capacity systems. They can be arranged in many geometrical configurations to suit your application.

If there is a need, the isolators can be customized to achieve user specific needs. Eg., different horizontal and vertical frequencies, dampening, etc. They can also be made cleanroom and vacuum capatible.

The SM-1 isolators can also be placed on pedestals to increase the height of the isolation system.

.
